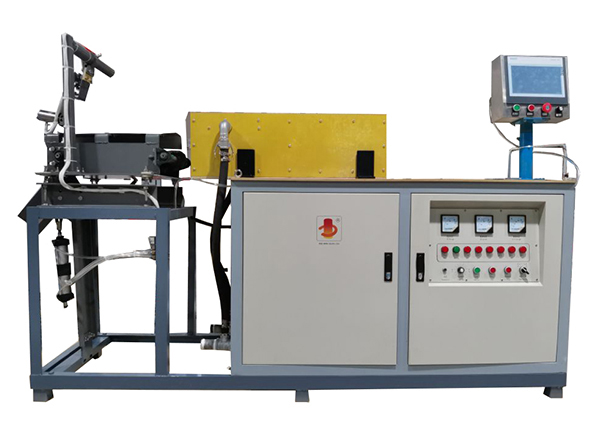

300KW Super Audio Frequency Induction Heating Machine

300KW Super Audio Frequency Induction Heating Machine

WH-VI-300 super audio frequency induction heating equipment has constant current and constant power control functions, which greatly optimizes the metal heating process, realizes efficient and fast heating, and fully exerts the product's superiority. The equipment has a number of self-protection functions: overvoltage, overcurrent, water shortage, overheating, high frequency, low frequency, phase loss protection, etc. If there is any manual error during operation, the machine will automatically alarm immediately to protect the life of the machine itself. The equipment can be equipped with remote control system equipment according to the actual use requirements of customers, and non-standard customization according to different workpieces. The machine can also work automatically under the external control system, which is suitable for different applications such as heating of various metal workpieces, heat treatment of auto parts, etc.

Send Inquiry

Technical parameters of WH-VI-300 super audio frequency induction heating machine

Input voltage

Three phase 380V/50-60Hz

Input current

450A

Output power

300KW

Oscillation frequency

10-25KHZ

Load rate

99%

Cooling water pressure

0.3Mpa

Cooling water flow

≥16L/min

Applications of WH-VI-300 super audio frequency induction heating machine

  • Diathermic forging: suitable for diathermy of φ20mm-φ40mm steel, stainless steel, copper and aluminum.

  • Quenching: Suitable for shaft quenching of φ90mm-130mm, quenching depth 2-5mm.

Video of WH-VI-300 super audio frequency induction heating machine
